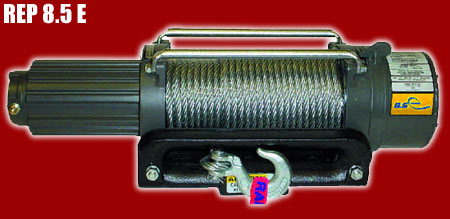

Model REP 8.5E
Part# 111073
Your Price: $585.00
FEATURES
|
-Proven
3-stage planetary gear system design for fast line speed
|
|
-95 ft. (29
M) of 5/16" ( 8MM) galvanized aircraft cable with replaceable clevis
hook
|
|
-Automatic
load-holding brake
|
|
-Cam action
clutch disengages planetary gear system for free spooling
|
|
-Weather-resistant
solenoid assembly
|
|
-12 ft.
wire pendant remote
|
|
-5 ft.
(1,52 M) 4 guage battery cables with connectors
|
|
-Hawse
fairlead
|
|
-Limited
lifetime warranty
|
|
-Made in
the USA
|
SPECIFICATIONS
| Rated line
pull |
(single
line) 8,500 lbs. (3,850 kgs)
|
| Gear
reduction ratio |
294:1
|
| Motor |
Permanent
magnet (12V)
|
| Overall
dimensions |
(LxWxH)
22.41" x 6.13" x 7.45" (569,3 mm x 155,6 mm x 189,1 mm)
|
| Drum size |
Diameter
2.5" (63,5 mm) Length 9" (228,6 mm)
|
| Weight |
56 lbs.
(25,4 kgs) winch and cable
|
| Cable
supplied |
95 ft. (29
m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis
hook
|
| Mounting
Bolt Pattern |
10.00±
.015 IN X 4.50± .015 IN (254.0 x 114.3 mm) |
|
Line
Speed & Amp Draw - First Layer
|
|
Line
|
lbs.
|
NO
|
2,000
|
4,000
|
6,000
|
8,000
|
8,500
|
|
Pull
|
kgs
|
LOAD
|
900
|
1,810
|
2,720
|
3,620
|
8,850
|
|
|
Line
|
fpm
|
15
|
12
|
10
|
8
|
6
|
4.5
|
|
Speed
|
mpm
|
4.5
|
3.6
|
3.0
|
2.4
|
1.8
|
1.3
|
|
|
Motor
Current
|
amps @ 12V
|
40 |
110
|
170
|
230
|
310
|
335
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Line
Pull & Cable Capacity
|
|
Layer of
Cable
|
|
1
|
2
|
3
|
4
|
|
|
|
Rated
Line
|
lbs.
|
8,500
|
6,900
|
5,800
|
5,100
|
|
|
|
Pull
per Layer
|
kgs
|
3,850
|
3,120
|
2,630
|
2,310
|
|
|
|
|
|
Cable
Capacity
|
ft.
|
15
|
40
|
70
|
95
|
|
|
|
per Layer
|
m
|
4
|
12
|
21
|
28
|
|
|
|
R - 4-way
roller fairlead
|
|
