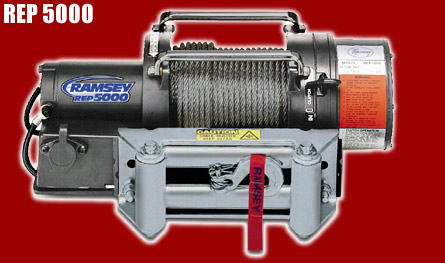

Model REP 5000R 12V
Part# 110904
Your Price: $695.00
Model REP 5000R 24v
Part# 110906
Your Price:
$795.00
FEATURES
|
-Proven
3-stage planetary gear system for fast line speed
|
|
-Motor and
solenoids are grounded directly to battery
|
|
-Strong
automatic load-holding brake for strength
|
|
-Cam action
clutch disengages planetary gear system for free spooling
|
|
-Weather
resistant solenoid assembly
|
|
-12 ft.
wire pendant remote
|
|
-6 ft.
(1.83 m) 4 gauge battery cables with connectors
|
|
-4-way
roller fairlead
|
|
-Limited
lifetime warranty
|
|
-Made in
the USA
|
SPECIFICATIONS
| Rated line
pull |
(single
line) 5,000 lbs. (2,260 kgs)
|
| Gear
reduction ratio |
294:1 (12V)
- 210:1 (24V)
|
| Motor |
Permanent
magnet 1.3 hp (12V) - 1.9 hp (24V)
|
| Overall
dimensions |
(LxWxH)
16.84" x 6.00" x 6.38" (428 mm x 152 mm x 162 mm)
|
| Drum size |
Diameter
2.5" (63 mm) Length 5.5" (140 mm)
|
| Weight |
REP 5000R -
60 lbs. (27 kgs)
|
| Cable
supplied |
80ft. (24
m) of 1/4" (6 mm) galvanized aircraft cable with replaceable clevis
hook
|
| Mounting
Bolt Pattern |
6.55±
.015 IN X 4.50± .015 IN (166.4 x 114.3 mm)
|
Note:
24V models have different dimensions. Consult factory.
|
Line
Speed & Amp Draw - First Layer
|
|
Line
|
lbs.
|
|
NO
|
1,000
|
3,000
|
5,000
|
|
|
Pull
|
kgs
|
|
LOAD
|
450
|
1,350
|
2,260
|
|
|
|
Line
|
fpm
|
12V
|
15
|
11
|
8
|
5
|
|
|
Speed
|
|
24V
|
20
|
17
|
12
|
8
|
|
|
mpm
|
12V
|
4.5
|
3.3
|
2.4
|
1.5
|
|
|
|
24V
|
6
|
5.1
|
3.6
|
2.4
|
|
|
|
Motor
Current
|
amps
|
12V
|
45
|
100
|
155
|
230
|
|
|
|
24V
|
20
|
50
|
105
|
160
|
|
|
Line
Pull & Cable Capacity
|
|
Layer of
Cable
|
|
1
|
2
|
3
|
4
|
|
|
Rated
Line
|
lbs.
|
5,000
|
4,200
|
3,600
|
3,200
|
|
Pull per
Layer
|
kgs
|
2,260
|
1,900
|
1,630
|
1,450
|
|
| Cable Capacity |
ft
|
15
|
30
|
55
|
80
|
| per Layer |
m
|
4.5
|
9
|
17
|
24
|
R - 4-way
roller fairlead
Note: Fairlead does
not attach directly to winch.
|
|
