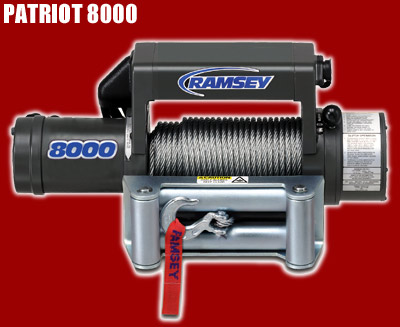

FEATURES

-Efficient 5.5 HP 12V DC series wound electric reversible motor for increased pulling power

-Proven 3-stage planetary gear system design for fast line speed

-Motor and solenoids are grounded directly to battery

-Automatic load-holding brake for strength and reliability

-Cam action clutch disengages planetary gear system for free spooling

-Weather resistant fully integrated solenoid assembly

-The Patriot series comes with either a 12 ft. wire pendant remote or the patent pending wireless remote

-6 ft. (1,83 M) 2 gauge battery cables with connectors

-4-way roller fairlead

-Limited lifetime warranty

-Made in the USA


SPECIFICATIONS

Rated line pull	(single line) 8,000lbs. (3,620 kgs)
Gear reduction ratio	126:1 (12V)
Motor	Series wound - 5.5 hp (12V) DC
Overall dimensions	(LxWxH) 22.66" x 6.12" x 9.94" (576 mm x 156 mm x 252 mm)
Drum size	Diameter 2.5" (63 mm) Length 9" (228 mm)
Weight	91 lbs. (41 kgs)
Cable supplied	95 ft. (29 m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis hook
Mounting bolt pattern	10.00± .015 IN X 4.50± .015 IN (254.0 x 114.3 mm)

Line Speed & Amp Draw - First Layer
Line	lbs.	NO	2,000	4,000	6,000	8,000
Pull	kgs	LOAD	900	1,810	2,720	3,620
Line	fpm	35	18	13	10	8
Speed	mpm	10.6	5.5	3.9	3.0	2.4

Motor Current	amps 12V	95	210	270	355	420

Line Pull & Cable Capacity
Layer of Cable		1	2	3	4
Rated Line	lbs.	8,000	6,550	5,540	4,800
Pull per Layer	kgs	3,629	2,971	2,513	2,177
Cable Capacity	ft	15	40	70	95
per Layer	m	4	12	21	28



Note: Fairlead does not attach directly to winch.
