| Features |
| Limited
2 year warranty, 3-stage planetary gear system for fast line speed,
Freespooling. Automatic load-holding brake. Power In and Power Out. 12
Ft Handheld Remote Switch. |
| Specifications |
|
| Part
Number |
76-50030C |
| Gear
Train |
Planetary |

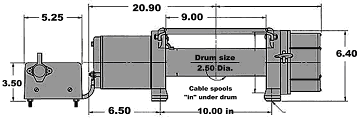

| Overall Dimensions |
{LxWxH} 20.90 IN x 6.00
IN x 6.38 IN [530.86 mm x 152.00 mm x 162.00 mm] |
| Motor |
Permanent Magnet (12 V),
2HP |
| Cable |
3/8" x 100' (14,400 lbs.
nominal) Galvanized Aircraft Cable With Replaceable Hook. |
|
|
| Total
Weight |
80 lbs. |
| Bolt
Pattern |
10" x 4.5" |
|
| Performance
Specifications |
| Performance of 1st
cable layer |
|
Line Pull
|
Line Speed (approx)
|
Current (amp)
|
|
Lbs.
|
Kgs.
|
Fpm
|
Mpm
|
12V
|
24V
|
|
0
|
0
|
13
|
3.9
|
35
|
30
|
|
2000
|
900
|
11
|
3.3
|
50
|
60
|
|
4000
|
1810
|
9
|
2.7
|
120
|
100
|
|
6000
|
2710
|
6
|
1.8
|
200
|
160
|
|
8000
|
3620
|
4.5
|
1.3
|
350
|
240
|
| Line pull and cable
capacity by layer |
|
Lbs.
|
Kgs.
|
Ft
|
M
|
|
1/8000
|
3620
|
15
|
4
|
|
2/6500
|
2950
|
40
|
12
|
|
3/5500
|
2490
|
70
|
21
|
|
4/4800
|
2170
|
95
|
28
|
Warning: To prevent serious injury: Do not use winches to move people:
Not intended for commercial use: Keep hand clear of
wire rope and fairlead opening during operation and when spooling
|
